Product Details:
|
| Product Name: | 200T Custom Servo Hydraulic Press Manufacturer | Nominal Force: | 2000KN |
|---|---|---|---|
| Ejecting Force: | 400KN | Max Working Pressure Of Fluid: | 25Mpa |
| Slider Stroke: | 700mm | System: | Servo |
| Certification: | CE ISO | Keyword: | Servo Hydraulic Press |
| High Light: | 200Tons small servo press,small servo press 2000KN 400KN,servo driven press MEILI |
||

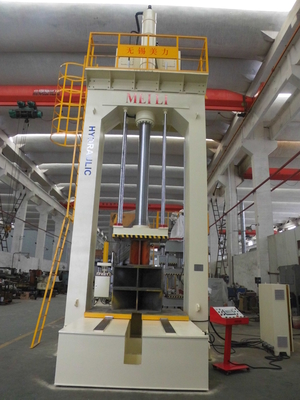

200T Custom Servo Hydraulic Press manufacturer
Low power,High speed,Low noise
Standard:
* Light ourtain safely device
* Touch panel controller(TPC)
* PLC program controller
* Stroke,speed digital control device
* Cooler device Displacemert sensor
* Constant stroke/constant pressure exchange
It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line.
| Specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
