Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C
Supply Ability: 80 Sets per Month

630T H Frame Hydraulic Servo Press small servo press For Forming

Description
Product Name: 630T H Frame Servo Hydraulic Press For Forming Force (kN): 630T
Ejecting Force: 1000KN Slider Stroke: 900mm
Key Selling Points: High Effieciency Advantage: Easy Operation Machine
Core Components: Moto Pump PLC Other After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Function: Deep Drawing Usage: Metal Sheet Stamping Punching
High Light:

630T hydraulic servo press

,

hydraulic servo press CE ISO9001

,

small servo press For Forming

630T H Frame Servo Hydraulic Press for forming



Servo Features:

1. Energy saving with high effieciency. Servo motor driving system can achieve 30%-50% energy saving.

2. Low noise. Noise can be controlled below 70 decibels.

3. Longer system life by reducing heat and the number of components.

4. Elimination of cooling systems for fluids involved in the process.

5. High accuracy, flexbility and reliability, low power consumption, less maintenance.



OPTIONAL ACCESSORIES/FUCTIONS

Die lifters

Die clamps

Dowel holes

Slug holes

Moving platens

Die cushions

Ejectors



Specification Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130

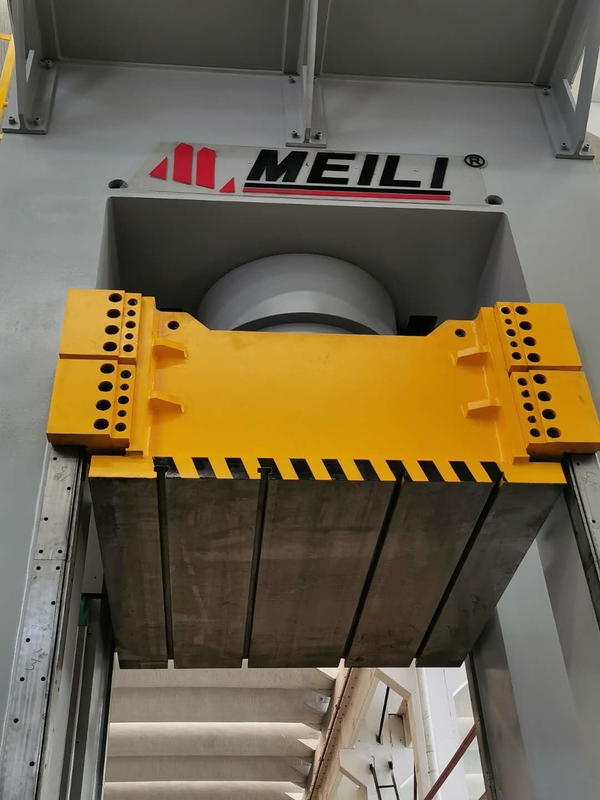

630T H Frame Hydraulic Servo Press small servo press For Forming 0

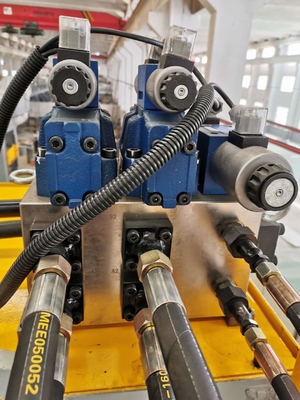

630T H Frame Hydraulic Servo Press small servo press For Forming 1



630T H Frame Hydraulic Servo Press small servo press For Forming 2



630T H Frame Hydraulic Servo Press small servo press For Forming 3
