C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN

C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN
C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN

Large Image :  C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN

Description
Product Name: 40T C Frame Servo Hydraulic Press Machine Supplier In China Warranty: 400KN
Type: C Frame Max Pressure Of Liquid: 22Mpa
Max Opening Height: 700mm Application: Metal Forming
High Light:

servo hydraulic press machine CE ISO

,

40Ton servo hydraulic press machine

,

400KN frame press machine

40T C Frame Servo Hydraulic Press Machine Supplier in China​.



C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC).



C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.





Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5





Overall size

L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000

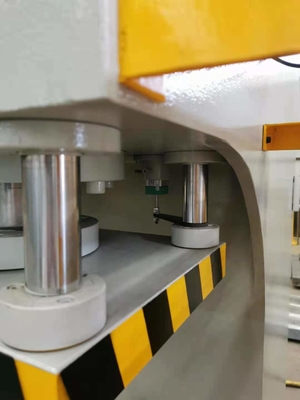

C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN 0

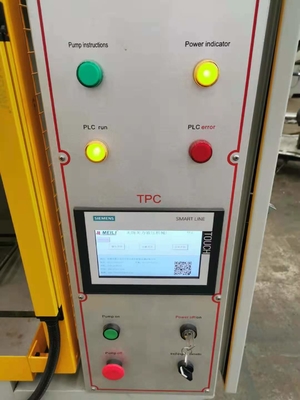

C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN 1

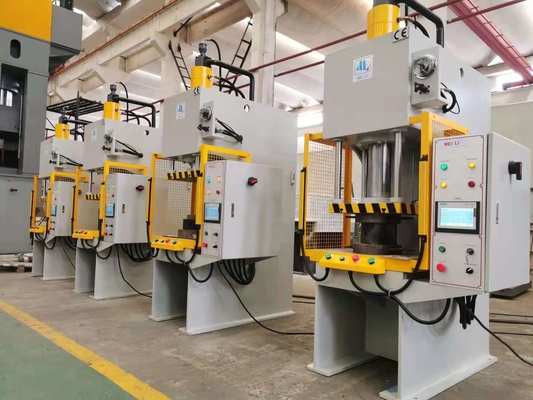

C Type 40Ton Servo Hydraulic Press Machine CE ISO PLC HMI 400KN 2



FAQ

Q1: Are you trade company or manufacturer?

Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
