1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping

1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping
1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping

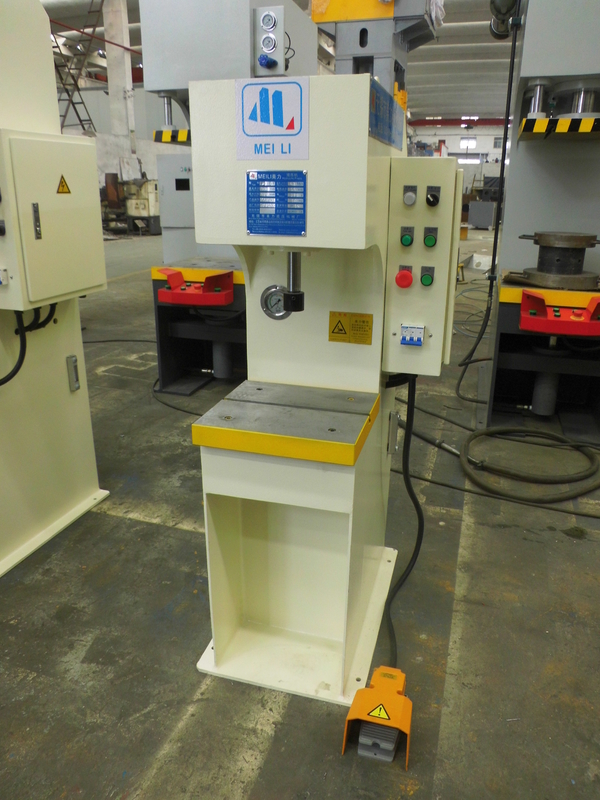

Large Image :  1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping

Description
Product Name: Hydraulic Bench Presses For Bench Top Mounting Force: 1T
Usage: Assembly, Forming And Stamping System: Normal
Max Opening Height: 300mm Max Stroke Of Slider: 120mm
High Light:

1KN Hydraulic Bench Press

,

CE ISO9001 Hydraulic Bench Press

,

1T benchtop hydraulic press

Hydraulic Bench Presses for bench top mounting



MEILI is pleased to offer a complete line of hydraulic bench presses, ideal for bench top mounting. Our bench press is 1 to 20 tons. While our standard model sizes are very popular, our engineers are glad to work with clients on special applications. Please contact us to see how we can customize a bench top press to meet your requirements.



MEILI C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.



Description Unit 1T 1.6T 2.5T 4T 5T
Nominal Force KN 1 1.6 2.5 4 5
Table size L-R mm 300 300 350 350 350
F-B mm 250 250 300 300 350
Max opening height mm 300 300 350 350 350
Max stroke of slider mm 120 120 160 160 200
Throat Depth mm 120 120 160 160 180
Down speed of slider mm/s 60 50 42 42 42
Return speed of slider mm/s 80 80 80 80 80
Operation Height mm 200 200 200 200 200
Powder of motor KW 1.5 1.5 2.2 2.2 3


1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping 0



1KN Hydraulic Bench Press 1T Benchtop Hydraulic Press For Assembly Stamping 1
