Product Details:
|
| Product Name: | Bench Hydraulic Press Machine For Bearing Assembly | Type: | C Frame |
|---|---|---|---|
| Keyword: | Bench Hydraulic Press Machine | Advantage: | Easy Operation Machine |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Application: | Assembly |
| System: | CNC | Material: | Steel Material |
| High Light: | bearing assembly hydraulic bench press,hydraulic bench press TPC,Hydraulic Bench Press 2500KN |
||

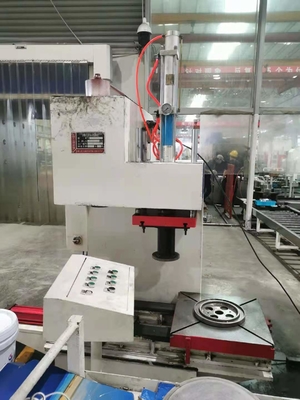

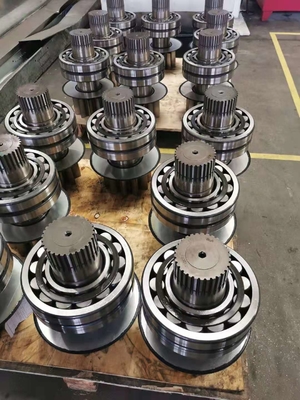

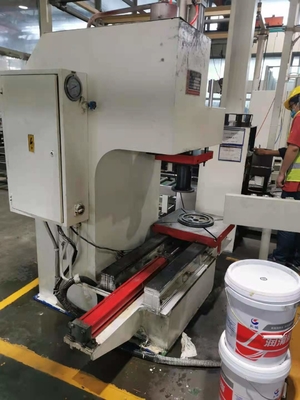

Bench Hydraulic Press Machine for bearing assembly.
C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC).
C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.
C-Frame standard models listed below are designed to be used in a variety of applications. Such all-in-one and precise design in high rigidity facilitates the machine movability and installation. The operation of machine is simple and safe. Special specifications meeting your unique demands can be incorporated into standard ones.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 | |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 | |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 | |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 | |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 | |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
|
Overall size |
L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 | |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 | |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 | |
