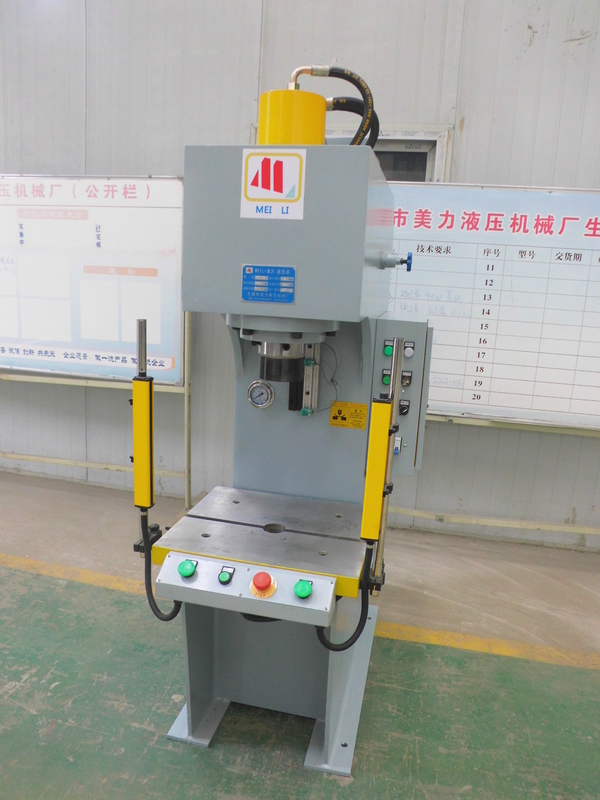

10Ton C Frame Hydraulic Press Machine Small Hydraulic Bench Presses

10Ton C Frame Hydraulic Press Machine Small Hydraulic Bench Presses
10Ton C Frame Hydraulic Press Machine Small Hydraulic Bench Presses

Large Image :  10Ton C Frame Hydraulic Press Machine Small Hydraulic Bench Presses

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

10Ton C Frame Hydraulic Press Machine Small Hydraulic Bench Presses

Description
Product Name: 10T C Frame Small Bench Hydraulic Presses Factory In China Type: Bench Hydraulic Presses
Nominal Force: 100KN Max Pressure Of Liquid: 8Mpa
Max Opening Height: 500mm Application: Assembly, Forming And Stamping
System: Normal Max Stroke Of Slider: 300mm
High Light:

10Ton C Frame Hydraulic Press Machine

,

hydraulic bench presses CE ISO9001

,

Small hydraulic bench presses

10T C Frame Small hydraulic bench presses factory in China.





With a wide range of available accessories such as die cushions and automatic die change systems, these press solutions can quickly boost the productivity of any workshop.



Furthermore, all our C-Frame hydraulic press machines and high speed press machines are designed with a highly rigid structure and uneven loading resistance for long lasting precision.



By always understanding our customers’ requirements and designing machines in cooperation with them, MEILI is able to design high precision presses that perform at the highest level, day in day out.




Specification

Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5





Overall size

L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000



10Ton C Frame Hydraulic Press Machine Small Hydraulic Bench Presses 0



10Ton C Frame Hydraulic Press Machine Small Hydraulic Bench Presses 1
