Product Details:
|
| Product Name: | 63T C Frame Small Hydraulic Press Suppliers In China | Keyword: | Small Hydraulic Press |
|---|---|---|---|
| Material: | Steel Material | Application: | Metal Forming |
| Motor Power (kw): | 5.5KW | Usage: | Pressing Metal Products |
| Type: | C Frame | Certification: | CE ISO |
| High Light: | 63Ton small hydraulic shop press,small hydraulic shop press Metal Forming,c frame punch press 5.5KW |
||

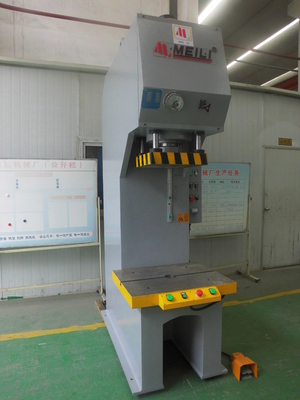

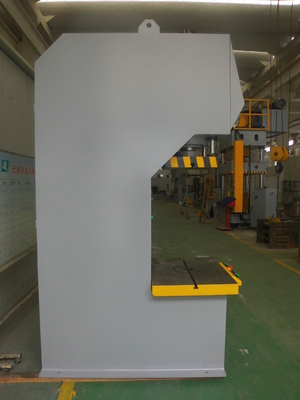

63T C Frame small hydraulic press suppliers in China.
C-Frame presses are very easy to install, use and maintain, as well as being very efficient at the high speed processing of metal sheets and other materials.
We can also custom build high speed C-Frame presses designed for large operating spaces that are suitable for both automatic operations and multi-press assembly lines. Whether you are looking for a highly specialized machine, or one that will perform at high speeds, we always deliver.

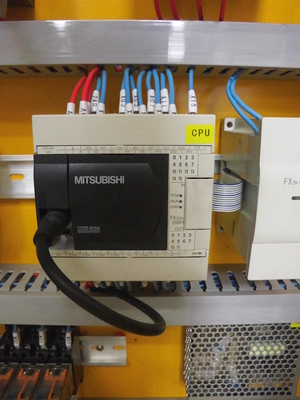

High speed C-Frame presses that can be used for a wide number of processes. These processes include assembling, riveting, molding, bending, straightening, pressing and more. With an outstanding price to performance ratio, these presses are very versatile, rigid and have long running times. We can also offer optional touch screen terminals for data storage, easy machine calibration and program configuration.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 | |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 | |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 | |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 | |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 | |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
| Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 | |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 | |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 | |
