Product Details:
|
| Product Name: | 160T C Frame Hydraulic Press Machine Factory In China | After Sales Service: | Installation Commissioning And Training Online Support |
|---|---|---|---|
| Force: | 160T | Power Source: | 1600kn |
| Max Pressure Of Liquid: | 25Mpa | Core Components: | 550mm |
| High Light: | 150Ton C Frame Hydraulic Press Machine,TPC C Frame Hydraulic Press Machine,c frame mechanical press CE ISO9001 |
||

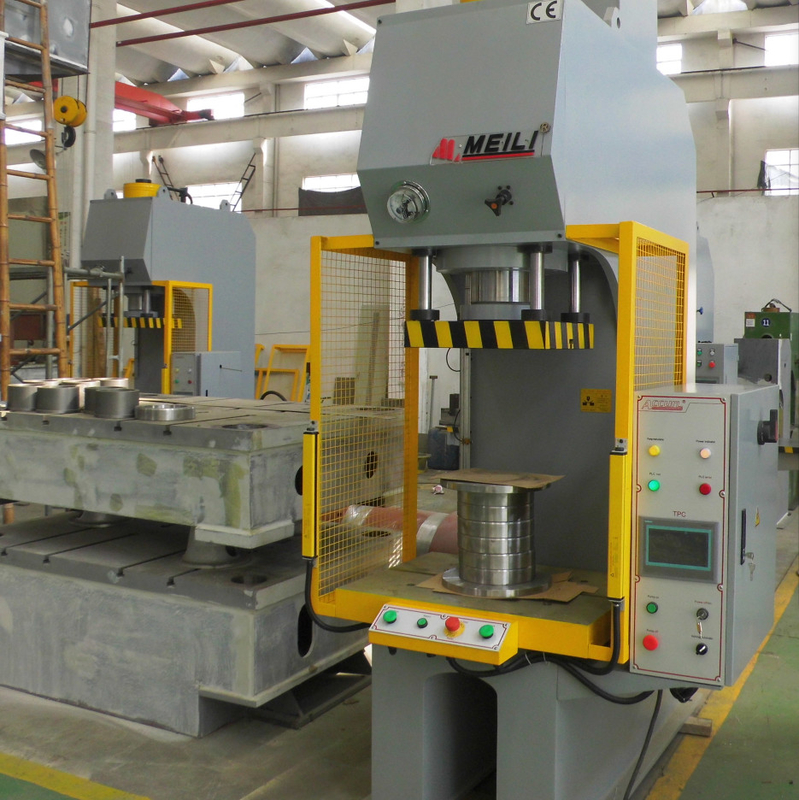

150T C Frame Hydraulic Press Machine Factory in China.
We specialize in designing and manufacturing hydraulic presses made on the basis of individual needs and requirements of our customers with the possibility to choose the main features, as well as functionality and functional parameters.

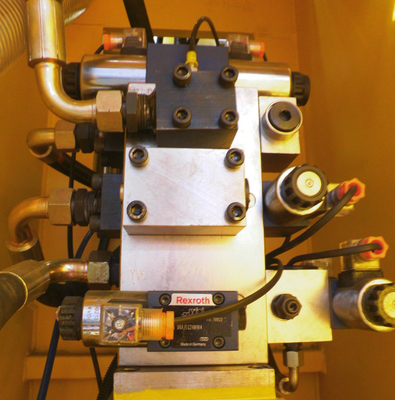

We offer hydraulic presses with a pressing force (tonnage) from 10T to 3 000T. All main press elements (frame, cylinders, slide, bolster, hydraulic power unit, etc.) are made in our plant. We use components from renowned manufacturers such as Bosch Rexroth, Parker, Nord, SEW, Siemens, B&R, Allen Bradley, Mitsubishi, Sick, Keyence, Balluff, etc.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 | |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 | |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 | |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 | |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 | |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
| Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 | |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 | |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 | |
How should I determine what type of hydraulic press I need for my application?
Please send us an email! Our experts will ask you a variety of questions to help determine what style, ton, and press options are necessary to meet your requirements.
Please provide information on your application, material, and what (if any) type of equipment you are using to achieve your application presently. We are happy to visit your business as required to fully understand your business’ needs.
