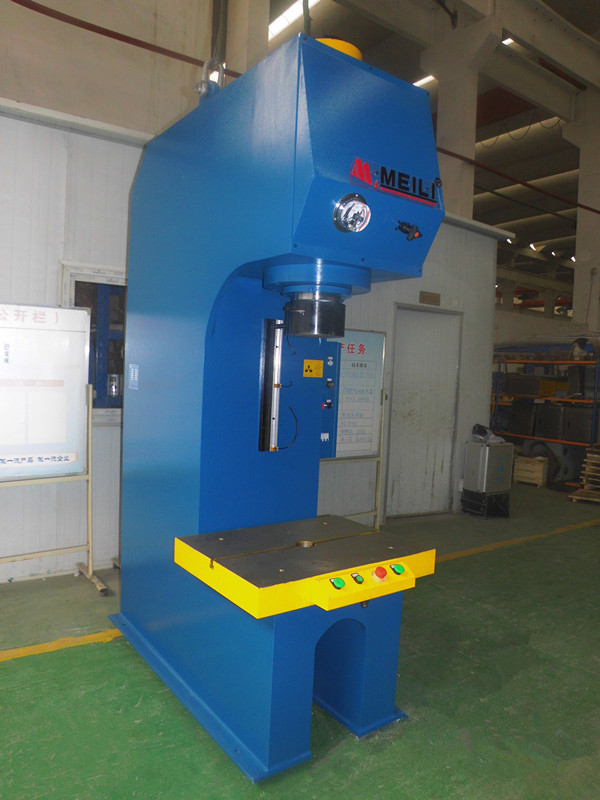

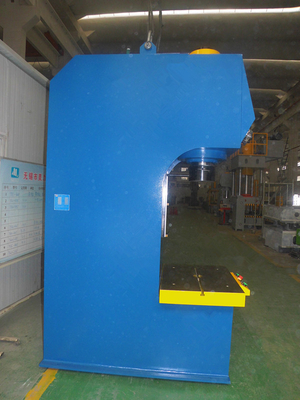

|Product Name:||100T Floor Model C Frame Hydraulic Press Machine||Nominal Force:||1000KN|
|Color:||25Mpa||Voltage:||380V/220V Optional,220V/380V(According To Requirement)|
|Usage:||Blanking Punching Deep Draw Work Forming Straightening Assembly||Power Source:||Hydraulic|
1000KN metalworking hydraulic press,
100T metalworking hydraulic press,
25Mpa c type hydraulic press
C-Frame presses are very easy to install, use and maintain, as well as being very efficient at the high speed processing of metal sheets and other materials. We can also custom build high speed C-Frame presses designed for large operating spaces that are suitable for both automatic operations and multi-press assembly lines. Whether you are looking for a highly specialized machine, or one that will perform at high speeds, we always deliver.
The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates. Pressure relief value is provided to safe guard the system and Machine from overload.
The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.
ELECTRICAL CONTROL PANEL
The electric control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if needed to be replaced. It is wired cleanly and labelled/ferruled properly as per the international practices to help easily locate any fault and replace components conveniently.
|Max pressure of liquid||Mpa||8||8||8||13||20||22||25||25||25||25||25||25|
|Max opening height||mm||400||450||500||550||600||700||800||800||800||800||800||900|
|Max stroke of slider||mm||200||250||300||350||350||400||500||500||500||500||500||500|
|Down speed of slider||mm/s||42||42||42||42||42||42||42||35||30||35||30||30|
|Return speed of slider||mm/s||80||80||80||80||80||80||80||60||60||65||60||55|
|Powder of motor||KW||2.2||3||4||5.5||5.5||5.5||7.5||7.5||11||15||18.5||18.5|
|Height above the floor||mm||1700||1770||1880||2100||2150||2400||2500||2800||2950||3000||3120||3400|
