TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press

TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press
TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press

Large Image :  TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press

Description
Product Name: 63T C Frame Hydraulic Press Machine For Automobile Parts Type: Gap Press
Max Opening Height: 800mm Core Components: Moto Pump
Max Stroke Of Slider: 500mm Application: Blanking Punching Deep Draw Work Forming Straightening Assembly
System: CNC Weight: 1-6T
High Light:

63T TPC C Frame Hydraulic Press Machine

,

automobile hydraulic press 630KN

,

63Ton automobile hydraulic press

63T C Frame Hydraulic Press Machine for automobile parts​.



Our hydraulic presses can be used in practically every branch of industry in any technological process in which there are operations such as pressing, punching, stamping, drawing, pressing in, sizing, forming, bending, etc.



We specialize in designing and manufacturing hydraulic presses made on the basis of individual needs and requirements of our customers with the possibility to choose the main features, as well as functionality and functional parameters.



Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5
Overall size L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000

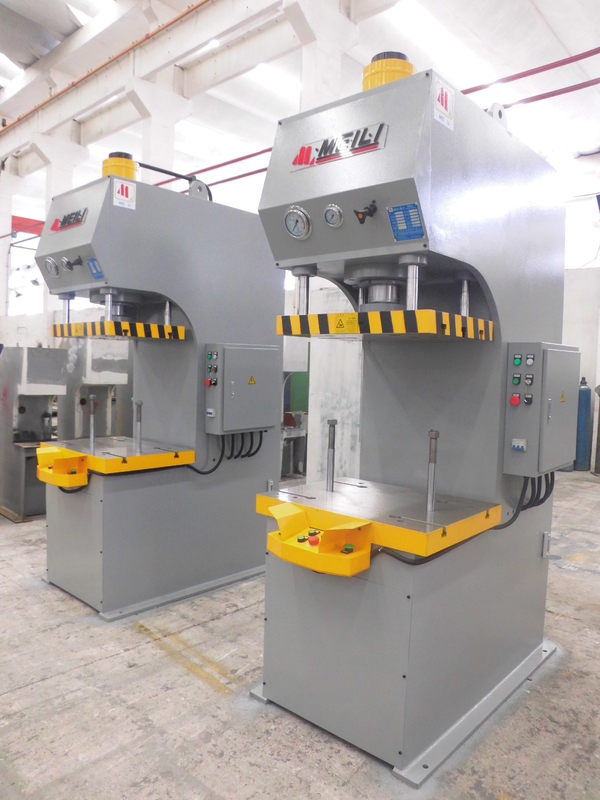

TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press 0

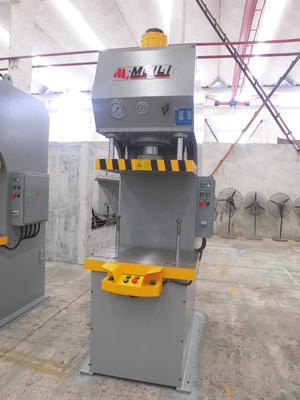

TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press 1



TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press 2
