10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control

10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control
10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control 10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control

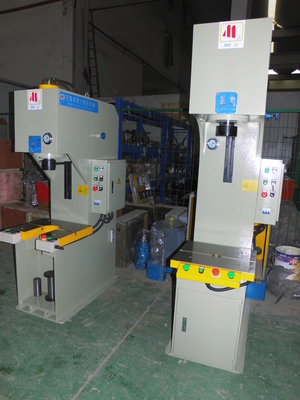

Large Image :  10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control

Description
Product Name: 10T C Frame Small Hydraulic Press Machine Manufacturer In China Keyword: Small Hydraulic Press,Hydraulic Press Machine Manufacturer
Nominal Force: 100KN Max Pressure Of Liquid: 8Mpa
Max Opening Height: 500mm Max Stroke Of Slider: 300mm
High Light:

10T C Frame Hydraulic Press Machine

,

C Frame Hydraulic Press Machine 100KN

,

c frame press machine 4KW

10T C Frame Small Hydraulic Press Machine Manufacturer in China



C-Frame standard models listed below are designed to be used in a variety of applications. Such all-in-one and precise design in high rigidity facilitates the machine movability and installation. The operation of machine is simple and safe. Special specifications meeting your unique demands can be incorporated into standard ones.


Applications:

Compressing and pulling-out of shafts and bushings.
Flexing and deep-drawing of plates.
Compression molding of powder alloy and thermosetting resins.
Straightening of metal sheets.
Pressing and punching of metal sheets.
Compression testing.
Other various applications.



Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5
Overall size L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000

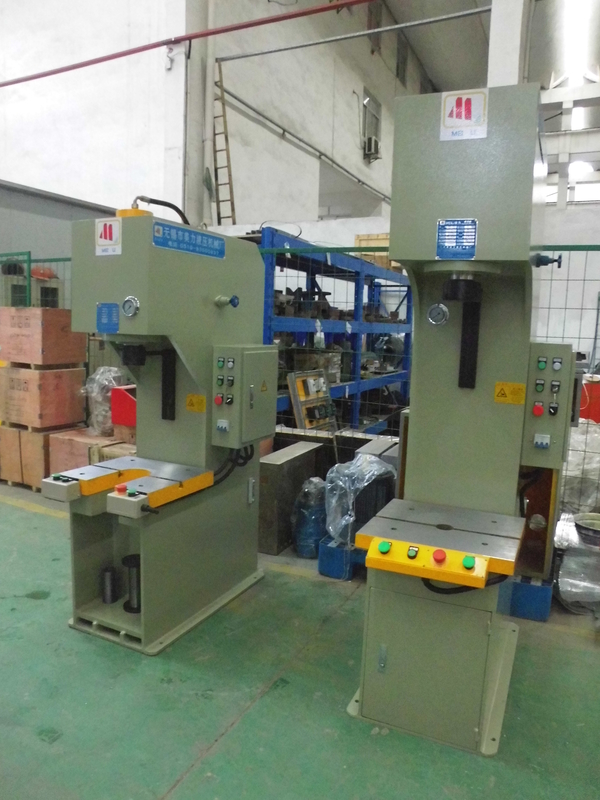

10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control 0



10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control 1



10T C Frame Hydraulic Press Machine 100KN 8Mpa 4KW TPC PLC Control 2



FAQ

Q1: Are you trade company or manufacturer?

Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
