Product Details:
|
| Product Name: | 10T C Frame Hydraulic Press Manufacturer In China | Type: | C Frame |
|---|---|---|---|
| Name: | Hydraulic Press Manufacturers In China | After Sales Service: | Installation Commissioning And Training Online Support |
| Machinery Test Report: | Provided | System: | CNC |
| Advantage: | Easy Operation Machine | Core Components: | Moto Pump |
| Application: | Blanking,stamping,punching,forming, Straightening And Assembling | Warranty: | 2 Years |
| High Light: | 10 Tons C Frame Hydraulic Press Machine,hydraulic metal stamping press 100KN,C Frame Hydraulic Press Machine 100KN |
||

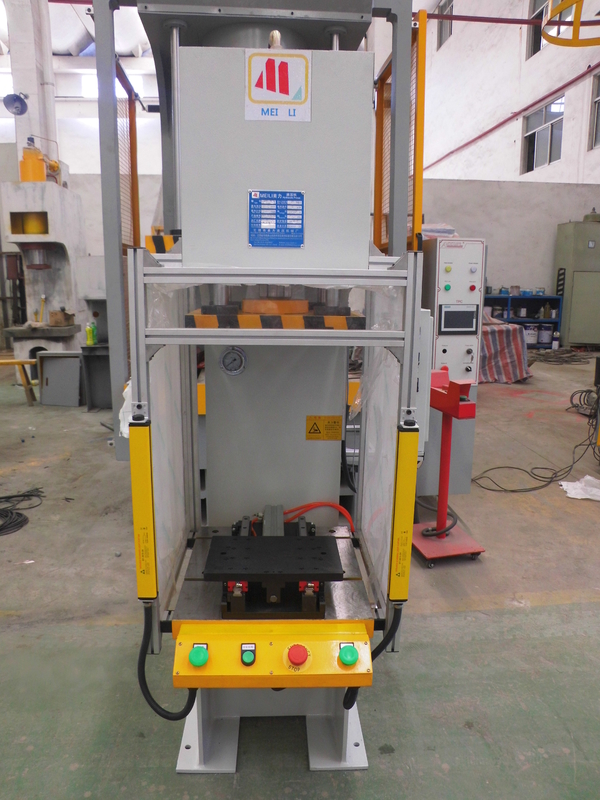

10T C Frame hydraulic press manufacturer in China. It is used for blanking,stamping,punching,forming, straightening and assembling. This machine is fastening two or more parts together.
The experienced MEILI tech service team is always on call to help with any problem you may have and give immediate feedback in order to help reduce downtime. We also utilize the equipment to help identify the issue remotely if needed.
MEILI C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.
Features:
• This structure of this C Frame press looks like letter "C" and all parts and installed in the machine body which facilitate easy and safe operation.
• C Frame high strength structure design with three sides open for easy material loading and product unloading as well as easy connecting with other corollary equipment.
• This C Frame hydraulic punching press can be tailor made to meet different application requirements.
Options:
• Die Change/Die Clamp Device;
• Upper Ejector, Bottom Ejector;
• Punch Head; Upper Table;
• Servo System
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 | |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 | |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 | |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 | |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 | |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
| Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 | |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 | |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 | |
