Product Details:
|
| Product Name: | C Frame Hydraulic Bearing Presses | Type: | C Frame |
|---|---|---|---|
| Usage: | Press Fitting Bearings | System: | CNC |
| Weight: | 1T | Advantage: | Easy Operation Machine |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Warranty: | 2 Years |
| High Light: | C frame hydraulic bearing press machine,Multifunctional hydraulic bearing press machine,c frame press 5.5KW |
||

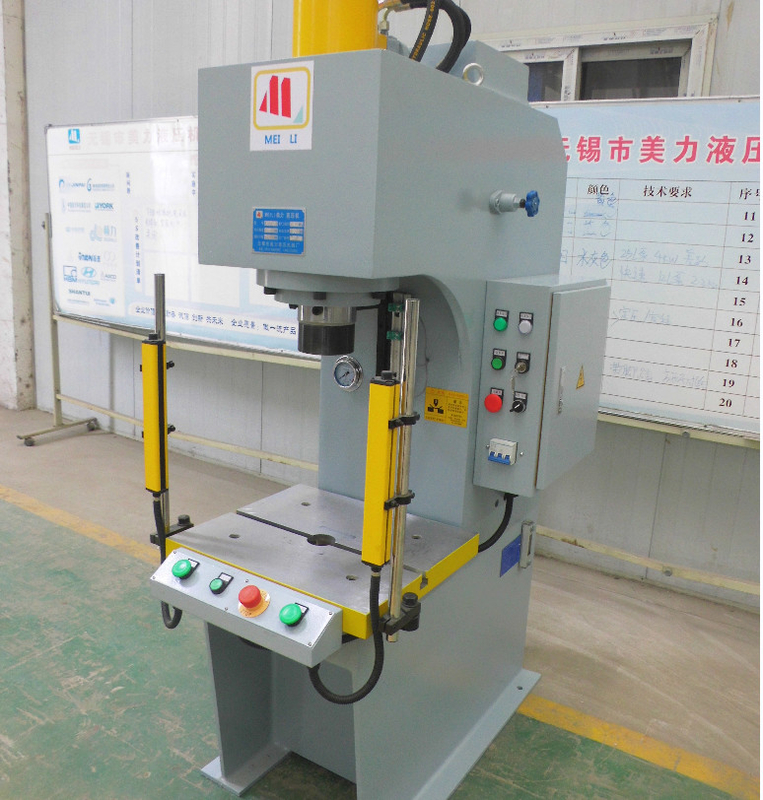

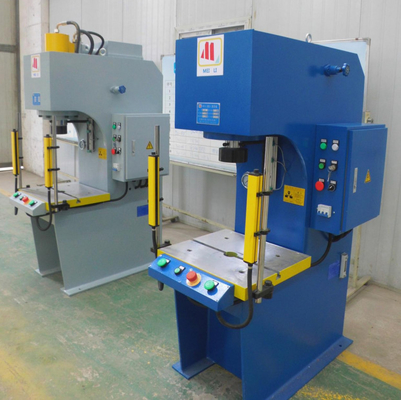

C frame hydraulic bearing presses.
Our hydraulic presses can be used in practically every branch of industry in any technological process in which there are operations such as pressing, punching, stamping, drawing, pressing in, sizing, forming, bending, etc.
We specialize in designing and manufacturing hydraulic presses made on the basis of individual needs and requirements of our customers with the possibility to choose the main features, as well as functionality and functional parameters.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 | |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 | |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 | |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 | |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 | |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
| Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 | |
| Height above the floor |
mm |
1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 | |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 |
|
