C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

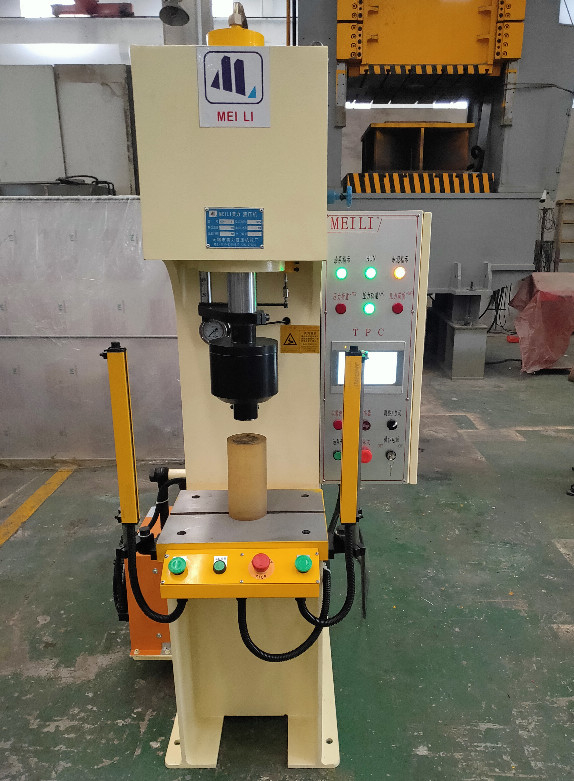

C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming

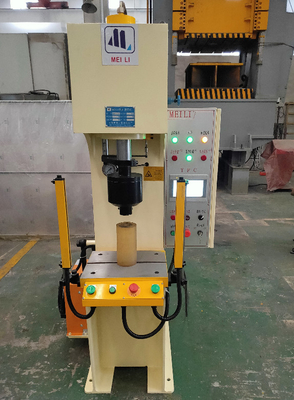

C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming
C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming

Large Image :  C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming

Description
Product Name: 10T Hydraulic Metal Punching Press Function: Punching,Stamping,Forming,etc
Type: C Frame Material: Steel Material
Application: Metal Forming Usage: Pressing Metal Products
Warranty: 2 Years After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
High Light:

10T metal punch press machine

,

metal punch press machine 100KN

,

Hydraulic metal punch press Metal Forming

10T Hydraulic Metal Punching Press.





We specialize in designing and manufacturing hydraulic presses made on the basis of individual needs and requirements of our customers with the possibility to choose the main features, as well as functionality and functional parameters.



We offer hydraulic presses with a pressing force (tonnage) from 10T to 3 000T. All main press elements (frame, cylinders, slide, bolster, hydraulic power unit, etc.) are made in our plant. We use components from renowned manufacturers such as Bosch Rexroth, Parker, Nord, SEW, Siemens, B&R, Allen Bradley, Mitsubishi, Sick, Keyence, Balluff, etc.



We carry out our projects comprehensively, from the identification of customer needs and the preparation of offers meeting the customer's requirements, through design and workmanship, to delivery combined with assembly, installation and commissioning at the customer's location.



Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5
Overall size L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000



C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming 0



C Frame 10T Hydraulic Metal Punch Press Machine 100KN Metal Forming 1
