Product Details:
|
| Product Name: | 100T Four Post Servo Hydraulic Press For Blanking | Force (kN): | 100T |
|---|---|---|---|
| Type: | 4 Columns | System: | Servo |
| Usage: | Metal Sheet Stamping Punching | Power Source: | Hydraulic |
| Application: | Industrial Parts | Warranty: | 2 Years |
| High Light: | 100Ton Servo Hydraulic Press,4 Columns Servo Hydraulic Press,4 column hydraulic press For Blanking |
||

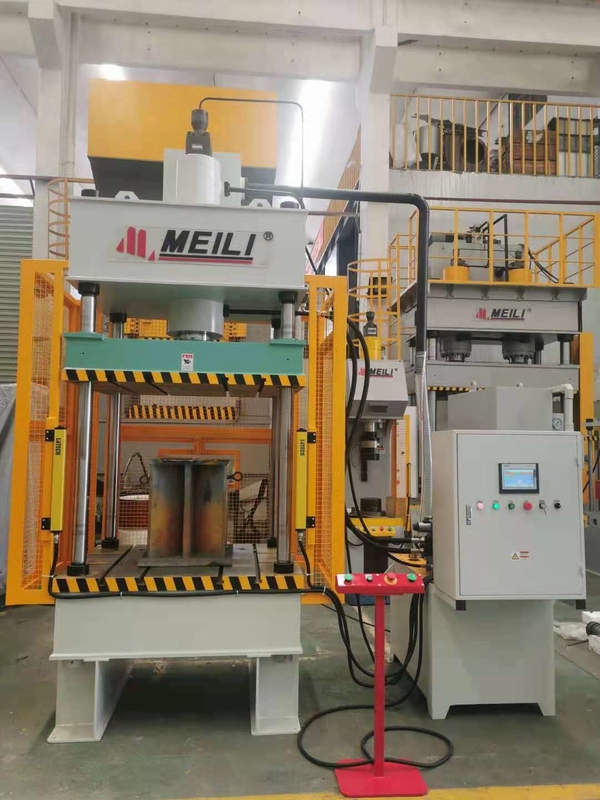

100T 4 Columns Servo Hydraulic Press for blanking

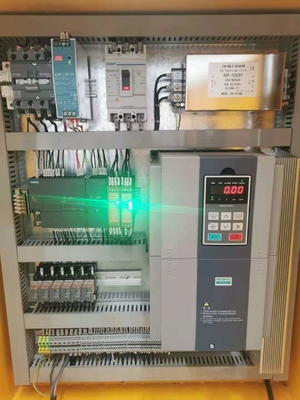

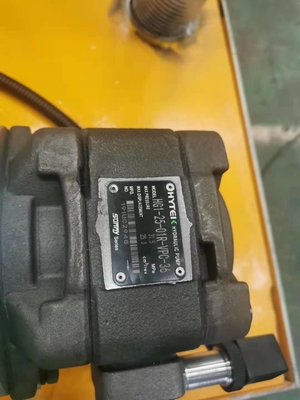

1. It consists of upper beam, slider, table, column, master cylinder, hydraulic power systemand electrical system.
2. Its remarkable feature is that the working space is spacious, the structure of the wholemachine is simple, and the craftsmanship is good.
3. The fuselage consists of an upper beam, a movable beam, a workbench and four columns.
OPTIONAL ACCESSORIES/FUCTIONS
Die lifters
Die clamps
Dowel holes
Slug holes
Moving platens
Die cushions
Ejectors
| Specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
