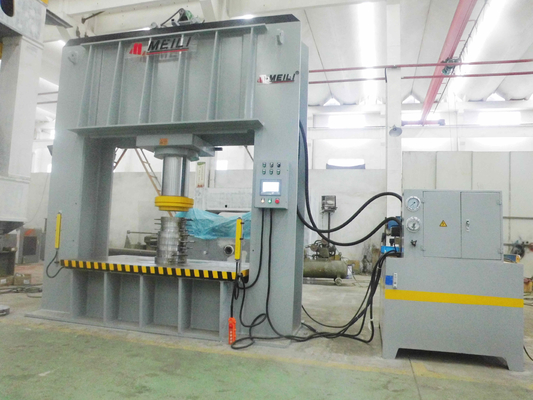

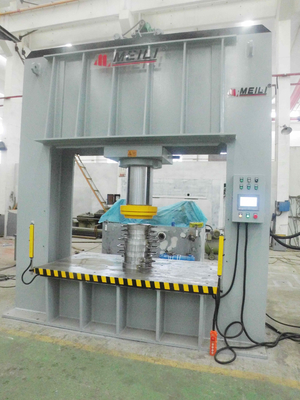

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V
315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V 315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V 315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V 315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

Large Image :  315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, , D/P, D/A,
Supply Ability: 80 Sets per Month

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

Description
Force (kN): 315T Function: Steel Plate Straightening
Core Components: Moto Pump PLC Other Voltage: 380V
Motor Powder: 16.5KW Warranty: 2 Years
Machinery Test Report: Provided Video Outgoing-inspection: Provided
High Light:

315T Hydraulic Drawing Press

,

Hydraulic Drawing Press 380V

,

deep drawing power press 16.5KW

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V

MEILI is experienced and dynamic. It is a team of people who love designing machinery and never stop innovating.

1. Cartridge valve control, to improve the efficiency
2. Preset pressure forming and preset stroke
3. High efficiency of cooling device, suitable for continuous production




Application
Drawing,bending,flanging,cold extruding,blanking processes for metal materials;straightening,press-in and forming processes for power and abrasive products,plastic and insulation materials.




OPTIONAL ACCESSORIES:

1. Photoelectric protection device

2. Moving workbench

3. Scroll to bracket

4. Lifting device

5. Touch screen

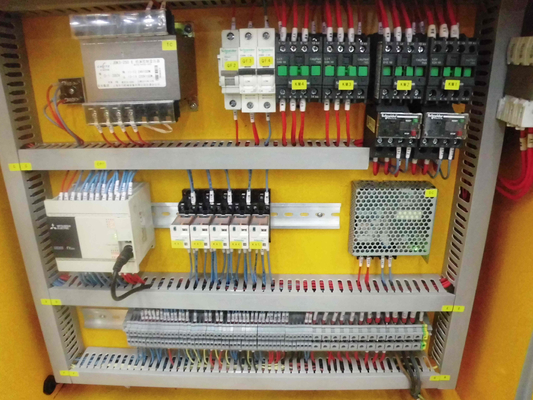

6. PLC

7. Numerical control system of Stroke, pressure, speed

8. The hydraulic system of cooling device

9. Servo control system

 Description Unit 63T 100T 200T 315T 500T 630T 800T 1000T
Nominal Force T 63 100 200 315 500 630 800 1000
Table size L-R mm 1400 1600 1800 2000 2400 2600 2800 3000
 F-B mm 800 800 1000 1200 1400 1500 1600 1800
Max opening height mm 500 500 600 600 700 700 800 800
Max stroke of slider mm 500 500 600 600 700 700 800 800
Head moving distance mm 1000 1200 1300 1400 1600 1800 1800 2000
 The width of longmen mm 1500 1600 1800 2000 2400 2600 2800 3000
Down speed of slider mm/s 22 30 30 30 30 30 25 25
 Working speed of slider mm/s 2-10 adjustable
Return speed of slider mm/s 50 50 50 50 50 40 40 40
 Height from working table mm 750
 Powder of motor KW 7.5 7.5 11 16.5 22 33 55 55


315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V 0

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V 1

315T Steel Plate Straightening Hydraulic Drawing Press 16.5KW 380V 2
