Product Details:
|
| Product Name: | 20T C Frame CNC Hydraulic Press For Producing Auto Parts | Force (kN): | 20T |
|---|---|---|---|
| Type: | C Frame | System: | CNC |
| Application: | Producing Auto Parts | Key Selling Points: | High Productivity |
| Core Components: | Moto Pump PLC Other | Function: | Blanking Punching Deep Draw Work Forming Straightening Assembly |
| High Light: | 20T CNC Hydraulic Press,C Frame CNC Hydraulic Press,servo motor press For Auto Parts |
||

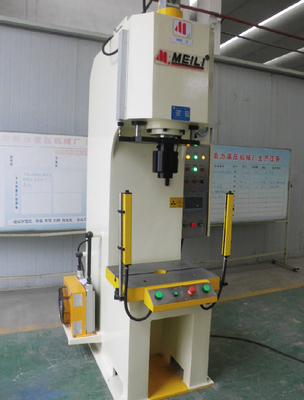

20T C Frame CNC Hydraulic Press For producing Auto Parts
Hydraulic press is for various metal processing purpose: stretching,punching,forming,stamping or bending. Max. tonnage 315T. It is applicable for pressing fictile materials, such as pressing, bending, folding and stretching. It can also used for forming and rectifying power products and non-metal products. It is equiped with PLC control system with three operation
methods—adjustment, manual and semi-automatic...
The columns and piston rod is medium-frequency quenched.
Over15 years ago, MEILI built the first hydraulic press machine. Today, we have over 5,000 installations in the field, and we're still making precision machines in the heart of China. Stress relieved throats for long machine life, MEILI offers C-frame press models up to 500 tons. With a wide variety of options available, each press can be customized to fit your production requirements.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 | |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 | |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 | |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 | |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 | |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
| Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 | |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 | |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 | |
