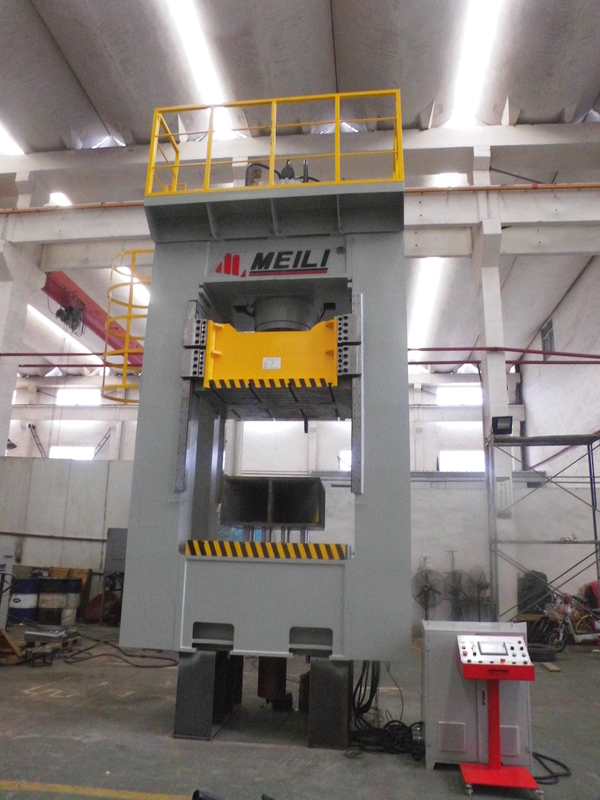

Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided

Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided
Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided

Large Image :  Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C
Supply Ability: 80 Sets per Month

Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided

Description
Product Name: Tailor-Made 400T Gib-Guided Servo Auto Trim Hydraulic Press Type: H Frame
Force (kN): 400T FUNCTION: Forming
System: Servo Opening Height: 1800mm
Slide Stroke: 1600mm Warranty: 2 Years
High Light:

Tailor Made Hydraulic Trimming Press

,

Hydraulic Trimming Press Gib Guided

,

servo hydraulic press 400T

Tailor-Made 400T Gib-Guided Servo Auto Trim Hydraulic Press



Product Information:

1. Our precision guided press, 8-point gib-guided press. Suitable technology, hot pressing for automotive interior parts.

    We offer the presses tons ranging from 50-1000tons.
2. Suitable for automobile roof, trunk, seat back-to-back, clothes rack, wheel shield, sunshade, hood heat insulation cushion and other parts.
3. Servo motor with high precision oil pump drive segment control pressure, speed, exhaust.
4. PLC programming, touch screen display, control.
5. Displacement, speed, pressure sensor precision control, arbitrary adjustment on the industrial touchscreen.
6. Provide remote network services, machine automatic alarm, prompt failure and maintenance.
7. It is suitable for trimming and compound forming of automotive interior parts.



 Description  Unit 100T 150T 200T 250T 300T 400T 500T
 Nominal Force KN 1000 1500 2000 2500 3000 4000 5000
 Opening Height mm 1400 1400 1600 1600 1800 1800 1800
Slide Stroke mm 1200 1200 1400 1400 1600 1600 1600
 Effectively table size  L-R mm 2400 2400 2400 2600 2600 2800 3000
 Effectively table size  F-B mm 1500 1500 1500 1800 1800 2000 2400
Fast Down Speed mm/s 300 300 300 300 300 300 300
 Pressing Speed mm/s 10-30 10-30 10-30 10-30 10-30 10-30 10-30
Up Speed mm/s 150 150 150 150 150 150 150



Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided 0

Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided 1



Tailor Made Servo Auto Hydraulic Trimming Press 400T Gib Guided 2
