Product Details:
|
| Product Name: | 100T Composites Press For SMC Products | Cnc Or Not: | CNC |
|---|---|---|---|
| Type: | Four Column | Function: | Stamping,Forming |
| Color: | Customizable | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Power Source: | Hydraulic | Voltage: | 380V/220V Optional,Customized |
| High Light: | 100Ton Four Column Hydraulic Press Machine,Four Column Hydraulic Press Machine HMI,smc composite press HMI |
||

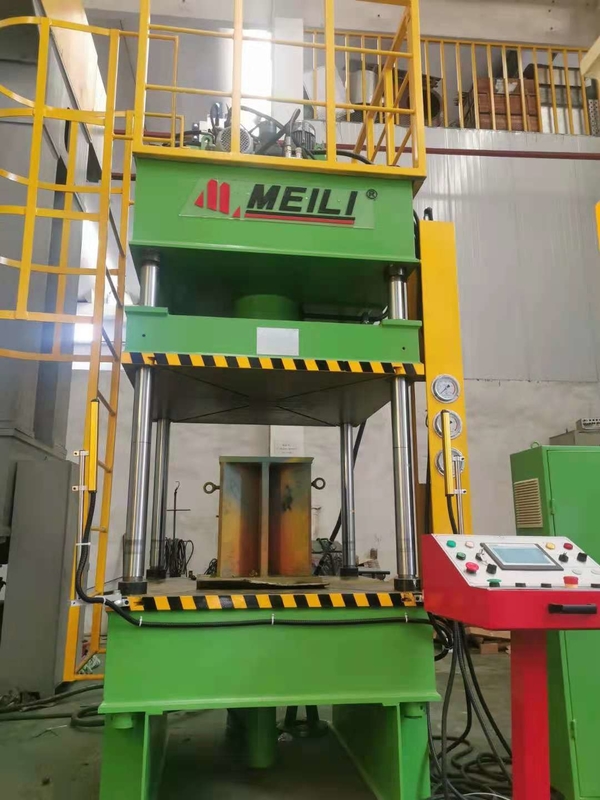

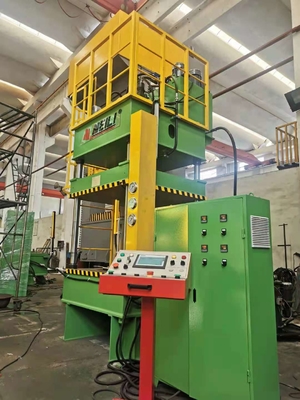

100T Four Column Hydraulic Press Machine SMC Composite Press HMI Control
100T composites press for SMC products. MEILI are offered from 1-10,000 tons. Parallelism and flatness are critical dimensions that we hold close tolerances on each press.
Four-column hydraulic presses are used in the heavy industry mainly in automatic processes of pressing, bending, cutting and hot forging. Most of them operate in robotic cells with automatic handling systems using modern manipulators and conveyors.
Our qualified team is experienced in designing such structures. We analyse weld stress using the effective notch method and optimise key system components such as the cylinder with piston, punch with die and tool holders.

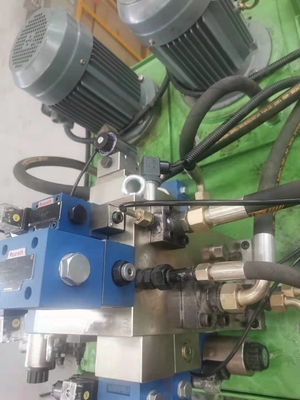

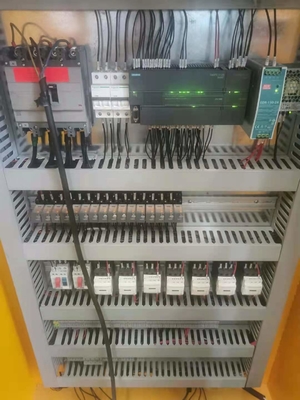

This allows us to prepare an appropriate system diagram, a professional design of the hydraulic and electrical system in a 3D model and deliver it to the customer together with detailed manufacturing and assembly documentation.
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
FAQ
Is it independent research and development production?
Yes!
We have a strong technical team and a complete modern production workshop for
four columns hydraulic press,and has a number of patented technology.
Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,
production capacity is very strong, conventional models try to ensure that the spot.
Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,
you can tailor the design and provide a set of solutions.
Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.
Is it possible to visit your factory? Is the traffic convenient?
Yes!
