Product Details:
|
| Product Name: | 40T Four Column Hydraulic Press Machine For Cutting | Type: | Four Column |
|---|---|---|---|
| Cnc Or Not: | CNC | Function: | Stamping,Forming,Hydraulic Press,cutting |
| Usage: | Cutting The Edge Of Aluminum Products | Certification: | CE ISO |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Warranty: | 2 Years |
| High Light: | 40T Four Column Hydraulic Press Machine,Four Column Hydraulic Press Machine for cutting,4 column Hydraulic Press Machine CNC |
||

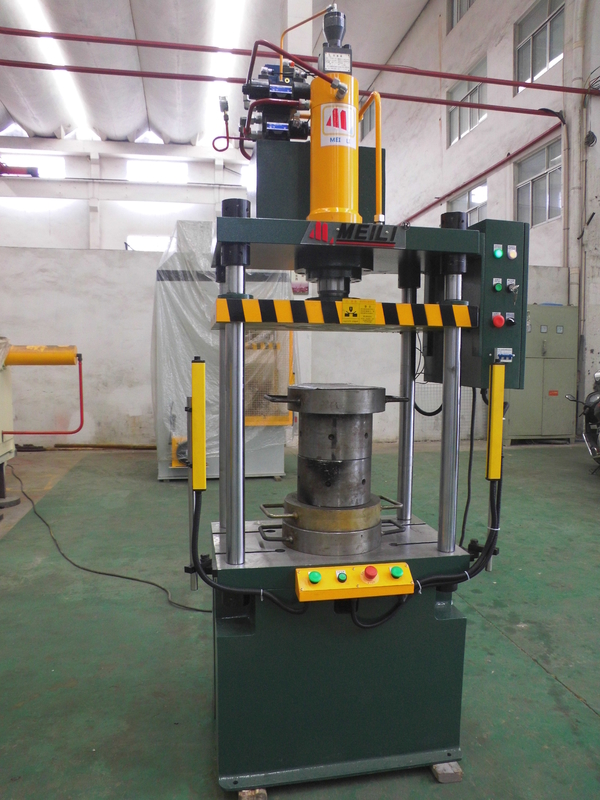

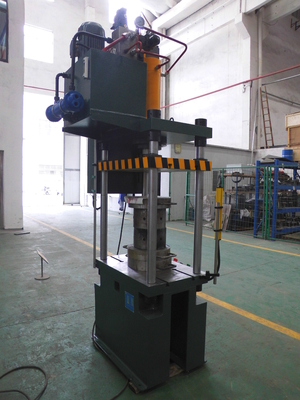

16T Four Column Hydraulic Press Machine for cutting
This series hydraulic press applies to plasticity material suppress technology , for instance: punching,bend,Flange thin stretch etc. may be also engaged in rectification ,press fitting, The suppress and shaping of Plastic products and powder Production.
Three beams and four columns characteristics:

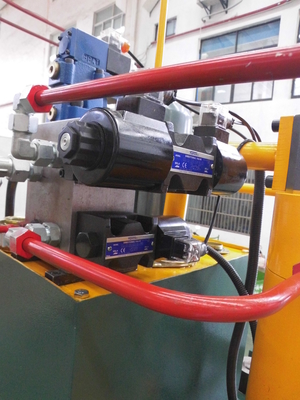

3 beam 4 column structures, economical and Practical , Hydraulic control adopts to insert set valve integrated system, decrease let out Point , Movement reliability, durable and long life span ,It is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time , The route of working pressure may be regulated in assigned scope ,adopt buttons for centralized control,Can realization manual,Semi-automatic,automatic 3 operate form .
Specification
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
FAQ
Is it independent research and development production?
Yes!
We have a strong technical team and a complete modern production workshop for
four columns hydraulic press,and has a number of patented technology.
Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,
production capacity is very strong, conventional models try to ensure that the spot.
Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,
you can tailor the design and provide a set of solutions.
Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.
Is it possible to visit your factory? Is the traffic convenient?
Yes!
