Product Details:
|
| Product Name: | Energy Efficient Electric Servo Hydraulic Press | Usage: | Assembly Press |
|---|---|---|---|
| After Warranty Service: | 600mm L-R | Warranty: | 500mm |
| System: | Servo | Cnc Or Not: | CNC |
| Material: | Steel Material | Voltage: | 220V/380V(According To Requirement) |
| High Light: | Electric servo 20Ton hydraulic press,20Ton hydraulic press Steel,20 ton electric press Motor Industry |
||

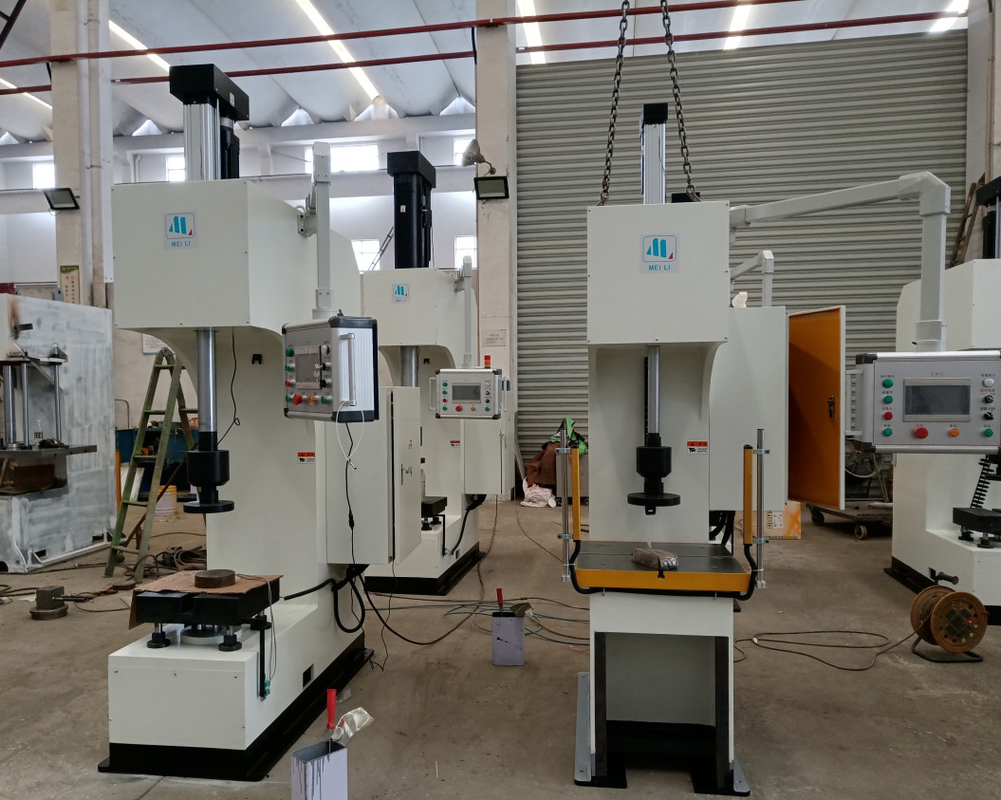

Energy efficient Electric servo hydraulic press
Product Features
1. Low impact, low noise, energy saving.

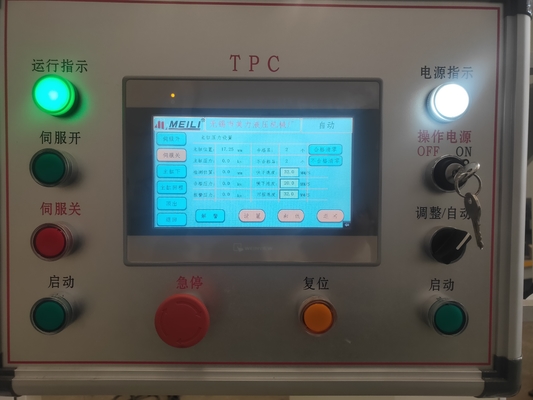

2. Touch screen setting and display the displacement and pressure.
3. Eletrical system controlled by PLC.
4. The accuracy of the the displacement can be reached 0.01mm. The accuracy of the pressure can be reached 1kg.
ELECTRIC SERVO ADVANTAGES
Energy efficient
accuracy
Low maintenance
Clean
Built to last a lifetime
Quiet operation
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
