Product Details:
|
| Product Name: | 100T Four Pillar Servo Hydraulic Presses For Metal Processing | Type: | Four Pillar |
|---|---|---|---|
| Voltage: | 380V,Customized | Motor: | SIEMENS |
| Usage: | Pressing Metal Products | Color: | Customizable |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | After Sales Service: | Installation Commissioning And Training Online Support |
| High Light: | Servo Four Column Hydraulic Press Machine,Four Column Hydraulic Press Machine MEILI,100Ton Servo Hydraulic Press |
||

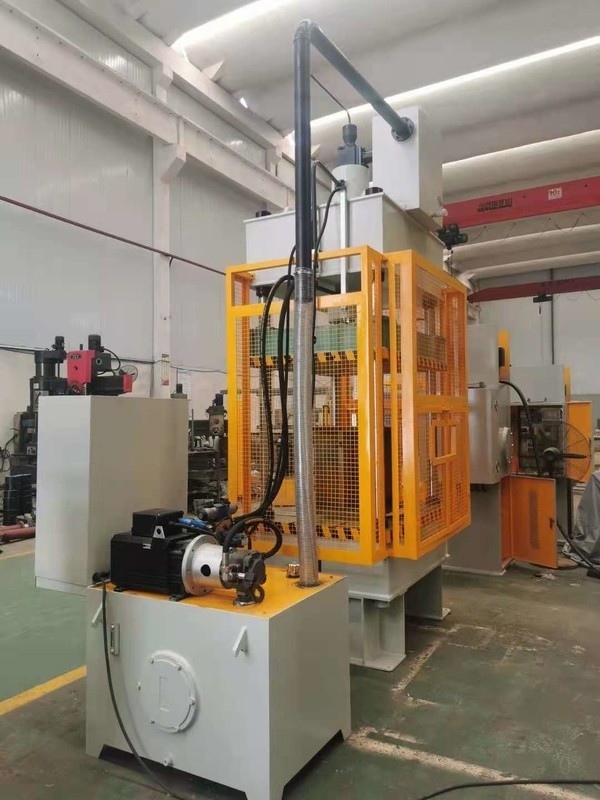

Servo 100Ton Four Column Hydraulic Press Machine For Metal Processing
Product Advantage
1. The higher precision of the movable working table and high rigidity of the press body make this press typically suitable for forming of workpiece with irregular shape and required for high precision.
2. Faster working speeds allow higher production efficiency.
3. The main hydraulic cylinder is made of alloy cast steel and its inner surface is a finely grinded Machine.
4. Four columns are made of alloy steel with high tensile resistance and finely grinded and electroplated with hard chrome.
5. The lower cylinder design makes a more compact overall dimension of the machine.
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
