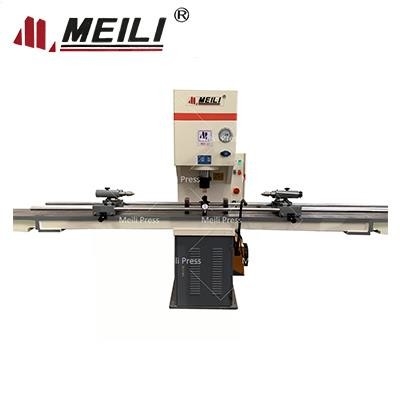

40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation

40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation
40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation
40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation 40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation

Large Image :  40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation

Description
Product Name: Servo Manual Operation Straightening Hydraulic Press Manufacturer In China Force: 40T
Down Speed Of Slider: 30mm/s Advantage: Easy Operation Machine
Keyword: Straightening Hydraulic Press Manufacturer Return Speed Of Slider: 60mm/s
Type: C Frame Automatic: Semi-automatic
High Light:

40 Tons Hydraulic Straightening Press

,

Hydraulic Straightening Press ISO9001

,

Straightening Press machine Servo

Servo manual operation Straightening Hydraulic Press Manufacturer in China




Competitive Advantage:
1. We use our self-made servo valve, so that the machine has no safety concerns in operation, high stability, long life, and not easy to damage.
2. We can provide the alignment program of your company's parts or products according to the needs of customers.
3. The straightening accuracy can reach 0.01.
4. The pressing point can be fixed for quick and easy straightening.
5. Straightening and testing are done in one machine, reducing working hours.
6. We have CE certification.

7. The machine uses a refractor and does not need to use a thickness gauge to measure. It can directly visually observe the curvature, speed up the straightening speed and judge the flatness.



 Description Unit 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T 400T 500T
Force KN 6.3 10 16 25 40 63 100 160 200 250 315 400 500
 Table size L-R mm 1000 1600 1600 1600 2000 2000 2000 2000 2000 2000 3000 3000 3000
F-B mm 300 300 300 350 400 500 500 500 600 600 600 600 600
Max opening height mm 300 300 350 350 400 400 400 500 500 600 600 700 700
Max stroke of slider mm 250 250 300 300 300 300 300 400 400 500 500 500 500
Throat Depth mm 170 170 200 200 200 300 300 300 350 350 350 350 350
Down speed of slider mm/s 30 30 30 30 30 30 30 30 20 20 20 20 20
Return speed of slider mm/s 70 70 70 70 60 60 60 60 50 50 50 50 50
Height from working table mm 750 750 750 750 750 750 750 750 750 750 750 750 750
Powder of motor KW 3 3 4 4 5.5 5.5 7.5 11 11 15 15 22 22



40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation 0



40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation 1



40 Tons C Frame Hydraulic Straightening Press Servo Manual Operation 2
