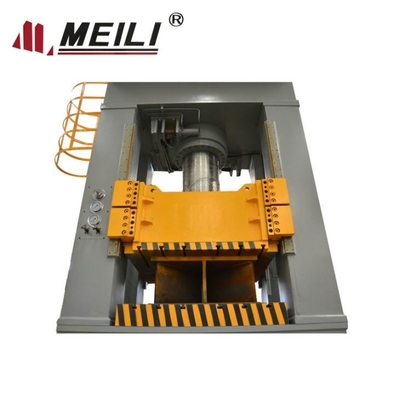

380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy

380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy
380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy
380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy 380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy

Large Image :  380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Model Number: hps-1000s
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T
Supply Ability: 80 Sets per Month

380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy

Description
Product Name: 315T H Frame Servo Hydraulic Press For Hyderogen Energy Panel Machine Type: H Frame
Force: 3150KN MOTOR POWER (KW): 22kw
Cushion Stroke: 300mm
High Light:

380V H Frame Hydraulic Press Machine

,

H Frame Hydraulic Press Machine 800 Ton

,

h frame hydraulic press 70mm/S

315T H Frame Servo Hydraulic Press for Hyderogen Energy Panel





Main Features:



The frame is heavy-duty as well as compact and it assures precise results.It is made of high quality mild steel and it has undergone systematicmechanical processes.

• Electric welding of high precision
• Usage of high-tech boring machines for extreme precision parts





APPLICATIONS:
• Graphic color CNC
• The composite series has been designed for applications in which structural rigidity and lexibility in terms of production are the particular rerogatives required. Machines with several actions from the top or bottom or pecial solutions enable complex shapes and large dimensions to be achieved in a number of different industries, such as:
• domestic appliances
• car and vehicle bodies
• structural elements
• stainless steel sinks
• cooker tops Laser beam safety photocells
• Silent and reliable internal gear pump
• High precision optical lines
• Electrical panel with high quality components
• Start&Stop system



Specification

specification Unit 100 250 315 500 630 1000
Nominal force KN 1000 2500 3150 5000 6300 1000
Slide of sroke mm 500 700 800 900 900 1000
 MAX opening height mm 900 1100 1250 1500 1500 1600
Cushion force KN 250 400 630 1000 1000 160
Cushion Stroke mm 200 250 300 350 350 400
Slide speed Idle stroke mm/s 150 150 150 140 140 140
pressing mm/s 10-15 10-15 10-15 10-15 10-15 10-15
Return mm/s 150 150 140 140 140 140
 Cushion speed  Eject mm/s 40 40 40 40 40 40
 Return mm/s 70 70 70 70 70 70
 Bolster  L-R mm 1000 1000 1200 1400 1500 1800
 F-B mm 1000 1000 1200 1400 1500 1800
 Cushion size L-R mm 700 700 800 1000 1000 1200
 F-B mm 700 700 800 1000 1000 1200
 Main motor KW 11 18.5 22 22*2 22*2 75



380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy 0



380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy 1



380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy 2



380V H Frame Hydraulic Press Machine 315 Ton Return 70mm/S High Accuracy 3

FAQ

Q1: Are you trade company or manufacturer?

Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
