500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing

Best Products
Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

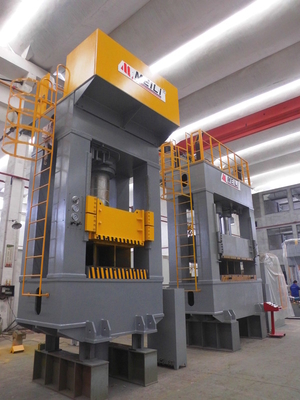

500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing

500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing
500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing
500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing 500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing

Large Image :  500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Model Number: hps-1000s
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T
Supply Ability: 80 Sets per Month

500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing

Description
Product Name: 500T Frame Hydraulic Press For Forming Force: 500T
Warranty: 2 Years Core Components: Moto Pump PLC Other
System: Servo Application: Hydrogen Energy Battery Industry
Advantage: Energy Saving, High Effieciency POWER SOURCE: Hydraulic
High Light:

500T H Frame Hydraulic Press Machine

,

H Frame Hydraulic Press Machine For Forming

,

h frame power press 15mm/S

500T Frame Hydraulic Press for forming



Servo hydraulic press adopts full servo control system, with imported pressure sensor and the American motion control module can accuracy to control the pressure and displacement. The displacement Accuracy control can reach ± 0.02mm. The machine adopts the whole tempering treatment to eliminate the stress.It is processed by the five face milling machine center, and eight face guiding structure with high stability.



Our custom Column Presses are available from 2-1000 tons. Each press can be equipped with hydraulic power unit and controls tailored to your specific application.



Servo Features:

1. Energy saving with high effieciency. Servo motor driving system can achieve 30%-50% energy saving.

2. Low noise. Noise can be controlled below 70 decibels.

3. Longer system life by reducing heat and the number of components.

4. Elimination of cooling systems for fluids involved in the process.

5. High accuracy, flexbility and reliability, low power consumption, less maintenance.



specification  Unit 100 250 315 500 630 1000
 Nominal force KN 1000 2500 3150 5000 6300 1000
 Slide of sroke mm 500 700 800 900 900 1000
MAX opening height mm 900 1100 1250 1500 1500 1600
Cushion force KN 250 400 630 1000 1000 160
 Cushion Stroke mm 200 250 300 350 350 400
 Slide speed Idle stroke mm/s 150 150 150 140 140 140
Pressing mm/s 10-15 10-15 10-15 10-15 10-15 10-15
 Return mm/s 150 150 140 140 140 140
 Cushion speed  Eject mm/s 40 40 40 40 40 40
Return mm/s 70 70 70 70 70 70
 Bolster  L-R mm 1000 1000 1200 1400 1500 1800
 F-B mm 1000 1000 1200 1400 1500 1800
 Cushion size  L-R mm 700 700 800 1000 1000 1200
 F-B mm 700 700 800 1000 1000 1200
Main motor KW 11 18.5 22 22*2 22*2 75



500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing 0



500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing 1



500T H Frame Hydraulic Press Machine For Forming 10-15mm/S Pressing 2

FAQ

Q1: Are you trade company or manufacturer?

Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
