Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001

Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001
Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001 Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001

Large Image :  Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C
Supply Ability: 80 Sets per Month

Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001

Description
Product Name: 30T Horizontal Servo Hydraulic Press For The Covers Force (kN): 30T
System: Servo Warranty: 2 Years
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Key Selling Points: High Effieciency
Function: Forming Application: Motor Bearing, Autoparts, Hardware
High Light:

30T Servo Hydraulic Press

,

Servo Hydraulic Press ISO9001

,

horizontal hydraulic press machine

30T Horizontal Servo Hydraulic Press for the covers



Application And Samples:

1. Pressing,forming,stretching and molding metal or non metal products via C type hydraulic press.

2. Bending and punching electronic parts,and jewelry,doorlocks,large sheet.

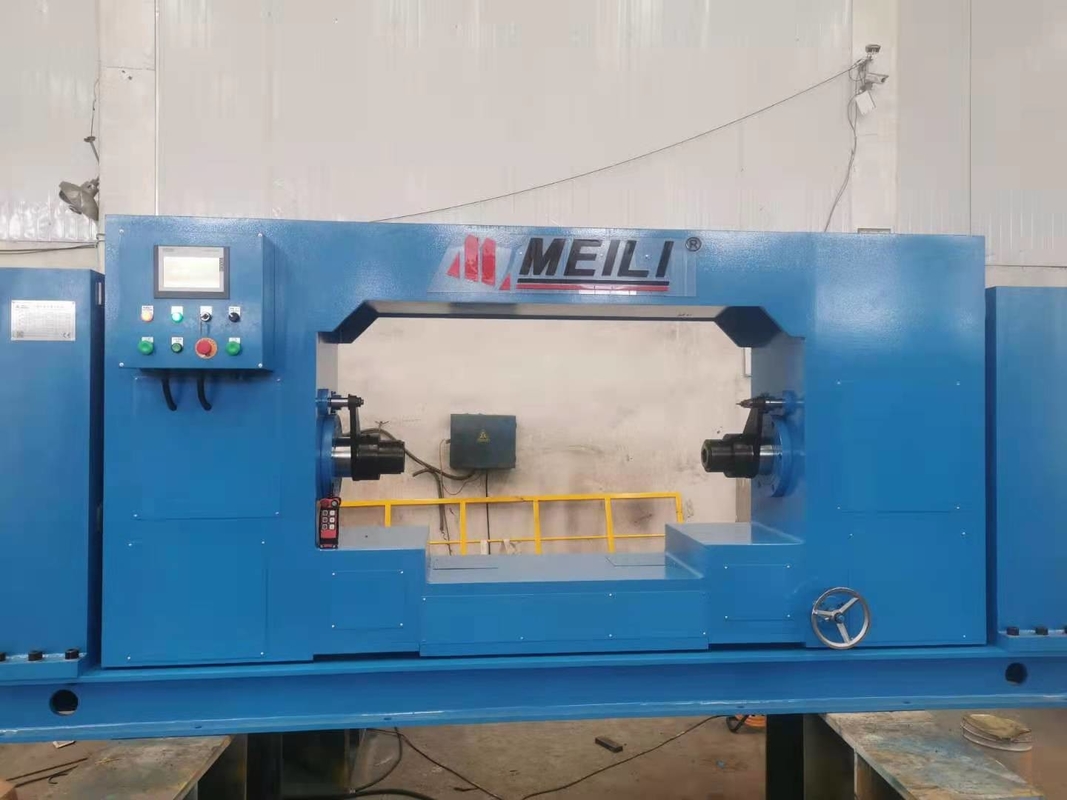

This machine is mainly used for press fitting of motor bearings, which can be used either in the production line or separately. The hydraulic press uses steel plate welding (stress relief), and the hydraulic system is completely enclosed in the fuselage, which is very convenient for practical use and maintenance. The height of the "V" table is adjusted according to different rotors, and the manual button control is convenient.





Advantages:

double cylinder synchronous pressing, high efficiency

3D computer optimzation design, V-shaped block movable, convenient to press-fit.

Using intergrated system, impact of small, long service life.

No oil leakage.

Can realize the constant pressure and stroke, two kinds of molding process. And the fuction of holding the pressure&dwell time.

Easy operation.





Specification Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130





Please contact us for information!

Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001 0



Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001 1



Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001 2



Horizontal 30T Servo Hydraulic Press For The Covers CE ISO9001 3
