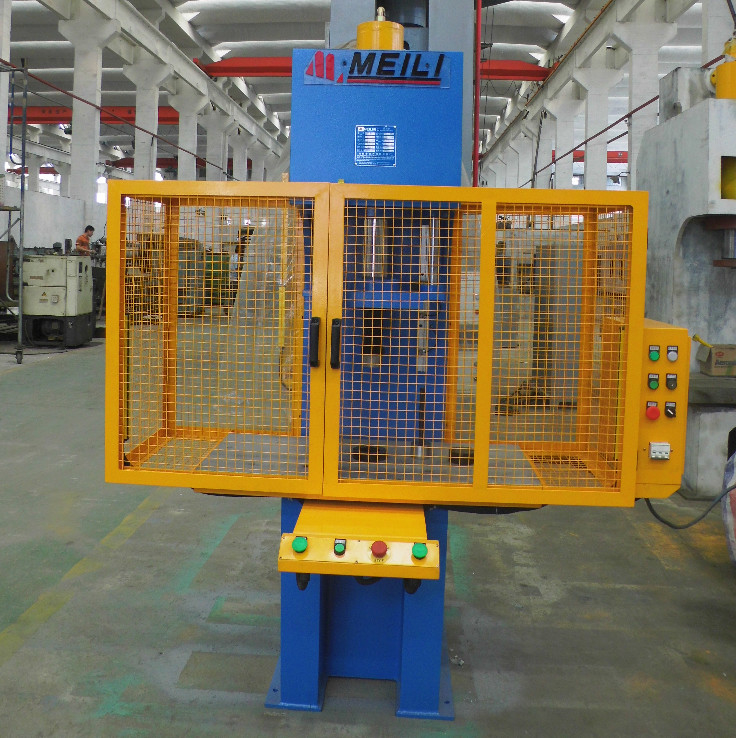

10Ton C Frame Industrial Hydraulic Press CNC System CE ISO9001

10Ton C Frame Industrial Hydraulic Press CNC System CE ISO9001
10Ton C Frame Industrial Hydraulic Press CNC System CE ISO9001

Large Image :  10Ton C Frame Industrial Hydraulic Press CNC System CE ISO9001

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

10Ton C Frame Industrial Hydraulic Press CNC System CE ISO9001

Description
Product Name: 10T C Frame Hydraulic Presses For Sale Type: C Frame
System: CNC Advantage: Easy Operation Machine
Function: Punching,Stamping,Forming,etc Color: Customizable
Warranty: 2 Years After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
High Light:

10Ton industrial hydraulic press

,

industrial hydraulic press CE ISO9001

,

C Frame press CNC System

10T C Frame hydraulic presses for sale​.



With a wide range of available accessories such as die cushions and automatic die change systems, these press solutions can quickly boost the productivity of any workshop.



Furthermore, all our C-Frame hydraulic press machines and high speed press machines are designed with a highly rigid structure and uneven loading resistance for long lasting precision.



By always understanding our customers’ requirements and designing machines in cooperation with them, MEILI is able to design high precision presses that perform at the highest level, day in day out.




Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5
Overall size L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000



If you are staking, crimping, broaching, notching, or inserting, these presses offer ease of access and can be equipped with data collection, force vs. distance monitoring, index units, speed control, and various electronic packages.



Machine highlight: High degree of automation, high stability, energy saving and low noise



MEILI C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.



Features:

• This structure of this C Frame press looks like letter "C" and all parts and installed in the machine body which facilitate easy and safe operation.

• C Frame high strength structure design with three sides open for easy material loading and product unloading as well as easy connecting with other corollary equipment.

• This C Frame hydraulic punching press can be tailor made to meet different application requirements.



Options:

• Die Change/Die Clamp Device;

• Upper Ejector, Bottom Ejector;

• Punch Head; Upper Table;

• Servo System
